Confined Space Rescue Tripod with Self-lock Device

The Confined Space Rescue Tripod with Self-lock Device is mainly used for rescue operations in high altitude, cliff and confined space, such as underground pipe, shaft, cesspit, closed container etc.

Product Recommendation

  • Product Introduction
  • Product Parameter
  • Product Picture
  • Product Comment

Introduction of Confined Space Rescue Tripod with Self-lock Device

The Confined Space Rescue Tripod with Self-lock Device is mainly used for rescue operations in high altitude, cliff and confined space, such as underground pipe, shaft, cesspit, closed container etc. Widely used by firefighting, municipal administration, mining etc rescue institution.
Ring protection chain on the feet of rescue tripod;
Self-lock device on winch of the rescue tripod, which ensures lock-in in any position, to make sure the safety of the sling;
Special stainless steel sling with good suppleness is taken used. The sling will not be damaged by  corrosion or lack of oil;
The length of legs can be adjusted, suitable for rugged rescue situations

Parameter of Confined Space Rescue Tripod with Self-lock Device

 Name

TRIPOD EVO rescue tripod

 Closed length

130cm

 Extension length

228cm

 Operating Load

400kg

 Breaking Load

1200kg

 Max. Prevent

breaking force

22KN/4944.94Lbs(Steel Wire Rope)

 Length scope

134-214cm

 Packing Dimension

175*23*23cm

 Weight

17.3kg

Winch with Automatic brake device

 Wire length

25m(NO. 284.01)

 Wire Diameter

5mm

 Operating load

180kg

 Breaking Load

1800kg

 Weight

13kg

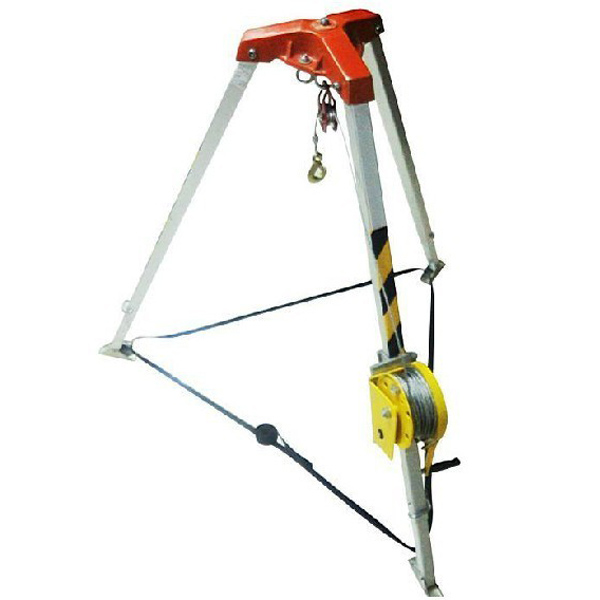

Pictures of Confined Space Rescue Tripod with Self-lock Device
